Products Description
Automatic tarpauin welding machine line, is automatic and multi functional machines, be widely used for PP PE PVC tarpaulin processing, it can joint tarpaulin rolls together, then punch eyelet on the edges, finally cut length into sheets, more efficiency and labor cost saving way, compared with semi automatic type.
Products Structure

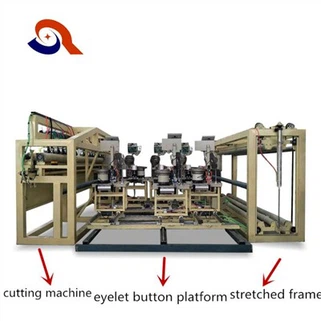

The automatic welding machine is mainly divided into : welding machine+fabric storage rack+eyelet machine+cutting machine,the four large parts, for the space located is about length 7.4m, width(from front to back)12m, and height 2.5m around, totally 12000kgs around.The key point is perfect performance and large capacity for working.
Part one: welding machine : to joint raw rolls together, seam seaing in the middle, and edge folding with with rope insert.
Working in tarpauin factory:
Part two: fabric storage rack, be used to storage the sheets after welding, waiting for punch eyelet.It is controlled by cylinder, loading up and down smoothly and freely.
Part three: eyelet machine： be used to punch eyelet on the two length edges automatically.
In normal, there are 6 set eyelet machine, 3 set on the right side, 3 set on the left side, the minmum eyelet distance 30cm.
Part four: cutting machine: be used to cut the lengths into pieces, lenght is set up by PLC.
The cutting machine is controlled by two pcs of servo motor, which make sure the stable and precise cutting position.
fabric Product Picture
Products Parameters
| Product Name | Automatic Welding Machine Line |
| Model | RD-CD-06 |
| Brand | XRD |
| Function | Welding eyelet punching and cutting |
| Speed | 0~40m/m |
| Dimension | 7.4*12*2.5M around |
| Weight | 12000KGS around |
| Driven Type | Pneumatic |
| Working Air Pressure | 0.8Mpa |
| Max Width for Finish | 6m(1.5 to 6m) |
| Heating Head qty | 4 pcs |
| Temperature Range | 10 to 650 degree |
| Material suitable for | PP PE PVC tarpaulin |
| Sealing width | 30~50mm |
| Power | 35kw |
Packing and shipping
For 6m automatic welding machine line, it needs to be loaded with 40HQ*2PCS+20GP*1PCS.
our Service
When shipping the automatic welding machine line, we will put manual and intruction with machine. If buyer still can not know how to assemble, we can arrange engineer to commissioniong on site for free. Buyer affords the round trip air tickets and provides the living and eating for engineer.
Our Factory
Qingdao Xinruide Machinery Equipment Co.,Ltd is one leading manufacturer for tarpaulin finishing line in China, with rich experiences and high level quality of machines, we are more and more welcomed by old and new clients.Our products including: PP PE PVC tarpaulin sealing machine line, automatic eyelet machine, rewinding machine, automatic strapping machine, roll cutting machine...
Until now, we have exported to more than 40 coutries, like Vietnam, Pakistan, Russia, Poland, Japan, Kenya, South Africa, Egypt... Hope you will be the next one!
