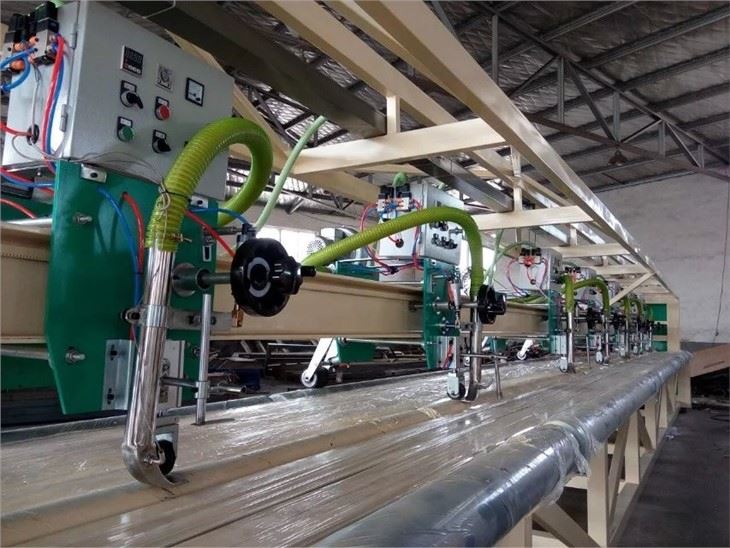

Tarpaulin Weld Machine
Automatic tarpaulin welding machine (also called sealing machine), can be used for pe and PVC tarpaulin, to joint severl rolls together at the same time.
1:It includes three parts: roll rack, foot pedal and main machine with several heating head.
2:380V/50HZ, three phrase, total power is 35kw.
3:middle part for seam jointing, and the two edges for hemming with rope insert.
4:it uses frequency inverter to control speed,
5：high efficiency and fast speed, 0 to 80m per minute.
Products Parameters
| Brand | XRD |
| Model | RD-RH-10 |
| Voltage | 380V/50Hz or customized |
| Power | 5-8KW |
| Air pressure | 0.66-0.8MPa |
| Welding length | 2-16m |
| Seam width | 30-40mm |
| Welding speed | 0-80m/min |
| Temperature range | 0-650℃ |
| Temperature tolerance | +/-2℃ |
| Suitable material | PE PVC Tarpaulin, Tent, Canvas, Air bubble film, Safe net |
| Control Style | Remote and Manual |
| Dimension | X*1.3*2.2m |
| Warranty | 1year, except wearing parts(Wearing parts will be additional attached) |
Our Factory
